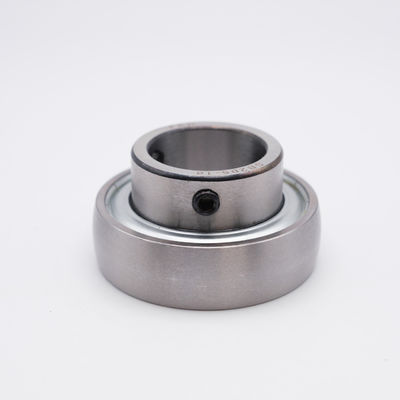

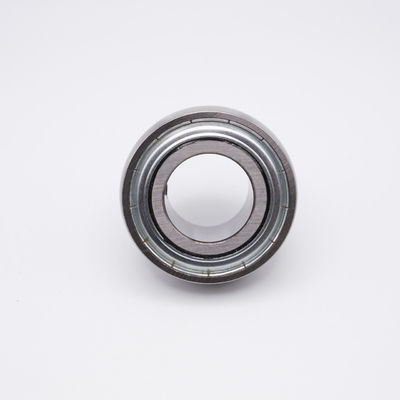

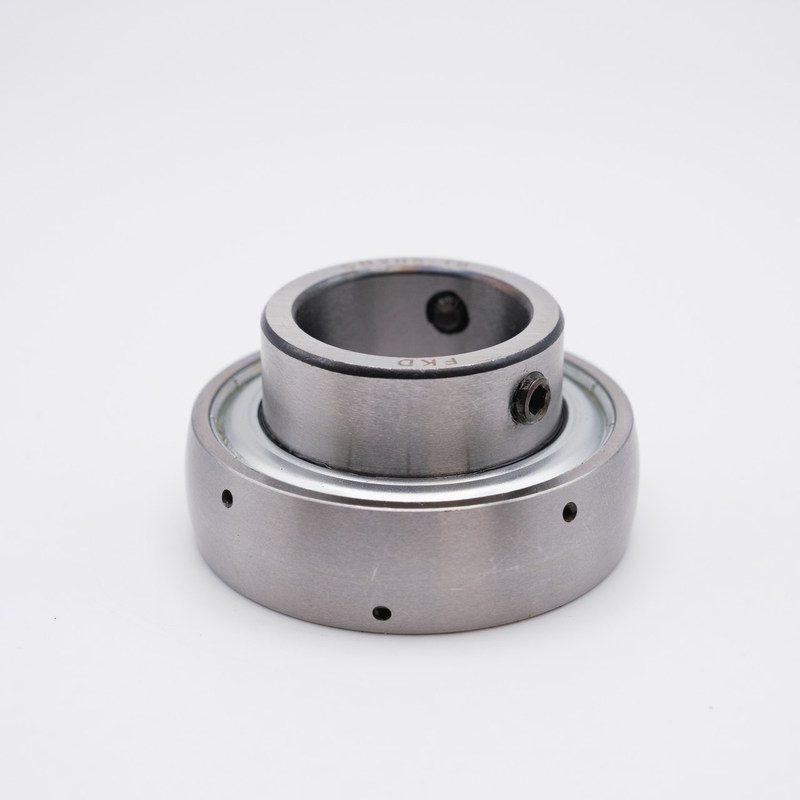

Product Manufacturer Long Using Life Good Performance 1/2" bore SB201-8 Spherical Outer Insert Bearing Set Screw
Product Details:
| Place of Origin: |
China |
| Brand Name: |
STAROCK |
| Model Number: |
SB201-8 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Delivery Time: |
3-7 work days |
| Payment Terms: |
T/T, Western Union, L/C |
Contact Now
Detailed Product Description
Key Features
SB201-8 is an Insert Ball Bearing that has been manufactured with a Spherical Outer Diameter and Set Screw Locking. This chrome steel insert ball bearing features a narrow inner ring as well as two Setscrews on the extended end of the insert, which can be tightened when positioned onto a shaft. SB201-8 insert ball bearings are made with lubrication groove access and are pre-lubricated with grease, ensuring they are ready for use upon arrival. SB201-8 Insert Ball Bearings are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.
- Inner Diameter:
- 1/2"
- Outer Diameter:
- 40mm
- Width:
- 12mm
- Material:
- Chrome Steel SAE-52100
- Lubrication:
- Chevron SRI-2 Grease
- Static Load:
- 1,075 lbf
- Dynamic Load:
- 2,147 lbf
- Speed Limit:
- 8,800 RPM
- Country of Origin:
- China
- Interchange Numbers:
- SB201-8G, FHS201-8-G, VS108, B1-8, SB201-8KP8G5, GYA008RRB, SNPS008RR
-
