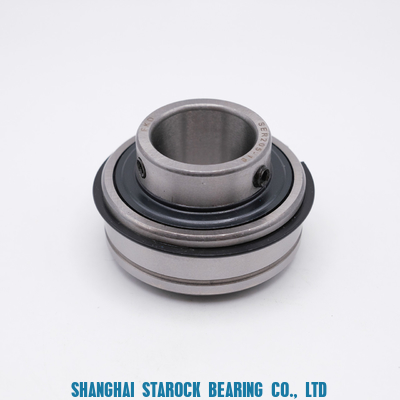

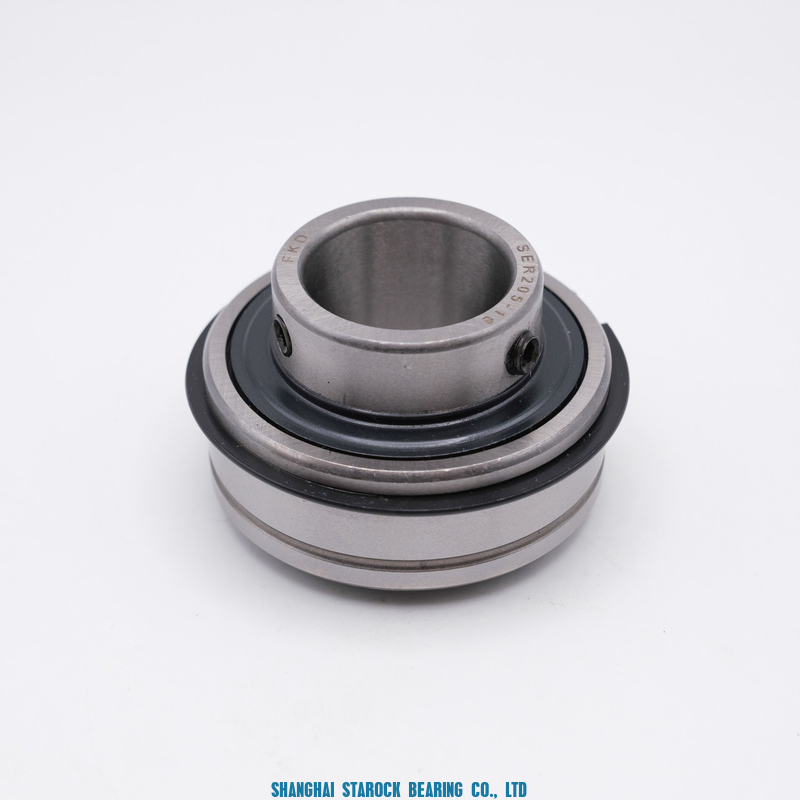

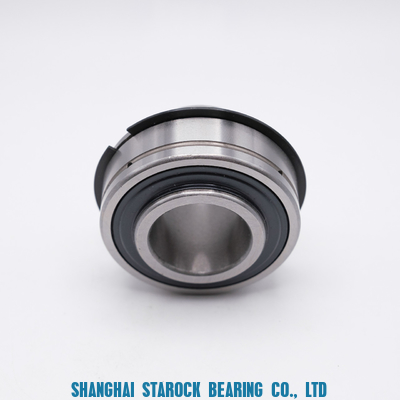

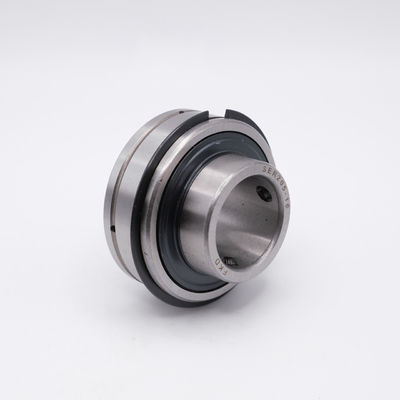

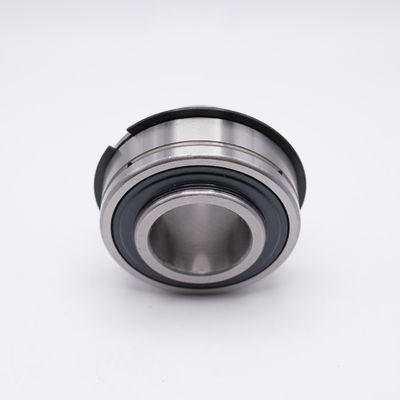

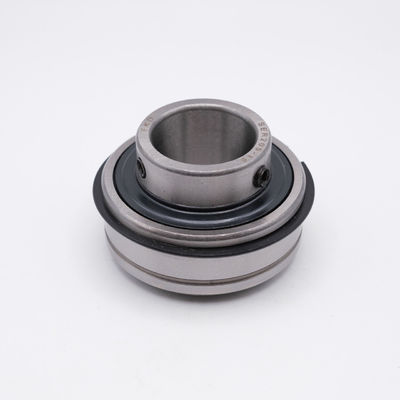

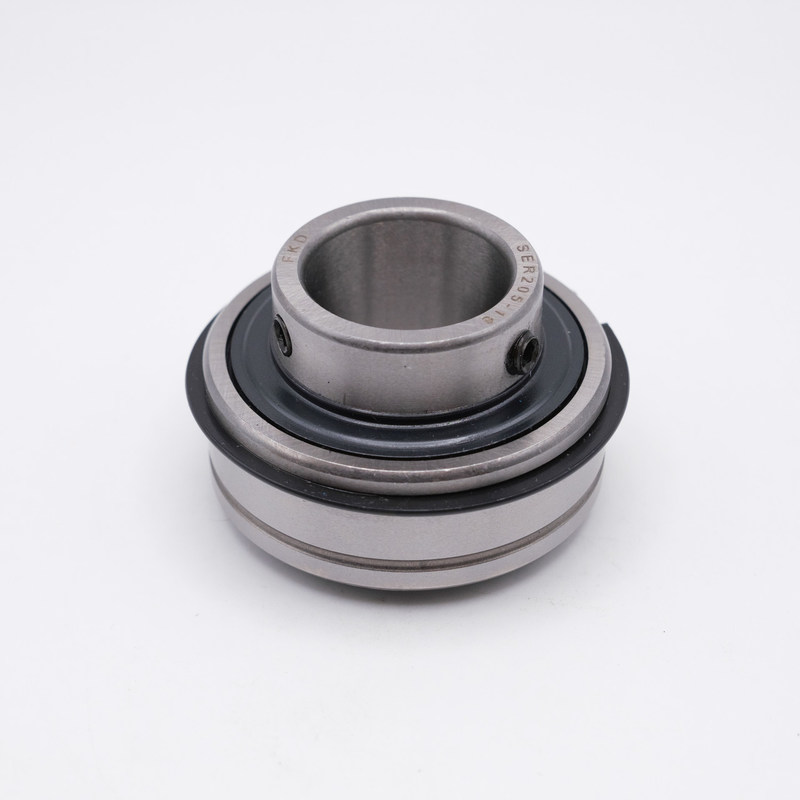

Product Manufacturer Long Using Life Good Performance 1-3/4 bore SER209-28 Insert Ball Bearing with Snap Ring ER28

Product Manufacturer Long Using Life Good Performance 1-3/4 bore SER209-28 Insert Ball Bearing with Snap Ring ER28

    • Product Manufacturer Long Using Life Good Performance 1-3/4 bore SER209-28 Insert Ball Bearing with Snap Ring ER28
    • Product Manufacturer Long Using Life Good Performance 1-3/4 bore SER209-28 Insert Ball Bearing with Snap Ring ER28
    • Product Manufacturer Long Using Life Good Performance 1-3/4 bore SER209-28 Insert Ball Bearing with Snap Ring ER28
  • Product Manufacturer Long Using Life Good Performance 1-3/4 bore SER209-28 Insert Ball Bearing with Snap Ring ER28

    Product Details:

    Place of Origin: China
    Brand Name: STAROCK
    Model Number: SER209-28

    Payment & Shipping Terms:

    Minimum Order Quantity: 1
    Delivery Time: 3-7 work days
    Payment Terms: T/T, Western Union, L/C
    Contact Now
    Detailed Product Description

    Key Features

    SER209-28 is a SER200 Series Set Screw Locking Bearing Insert Ball Bearing with a Snap Ring and Grease Feeding Access. This SER209-28 Insert Bearing has two set screws which allows it to tighten against a shaft once it is fitted properly and a grease feeding groove for re-lubrication of the bearing. Our SER200 Series Insert Bearing features a snap ring which facilitates the axial location of the bearing in its housing and each of our inserts have been pre-lubricated with grease, allowing them to be ready for use upon arrival.

    Inner Diameter:
    1-3/4"
    Outer Diameter:
    85mm
    Width:
    27.8mm
    Material:
    Chrome Steel SAE-52100
    Lubrication:
    Chevron SRI-2 Grease
    Static Load:
    4,610 lbf
    Dynamic Load:
    7,390 lbf
    Speed Limit:
    3,700 RPM
    Country of Origin:
    China
    Interchange Numbers:
    ER28, SER-28, VER-228, ER209-28, VCS209-112DINR, ER-28, SER209-28, SM1112
