Product Manufacturer Long Using Life Good Performance 1-11/16 bore HC209-27 Eccentric Collar Insert Ball Bearing UG209-27 NA209-27
Product Details:
| Place of Origin: |
China |
| Brand Name: |
STAROCK |
| Model Number: |
HC209-27 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Delivery Time: |
3-7 work days |
| Payment Terms: |
T/T, Western Union, L/C |
Contact Now
Detailed Product Description
Key Features

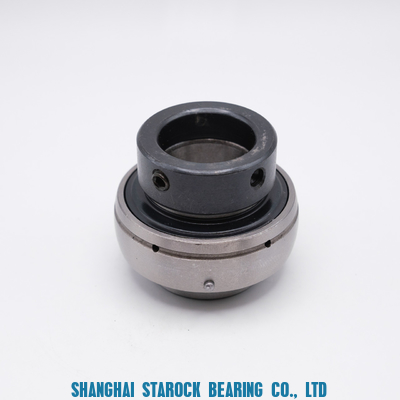

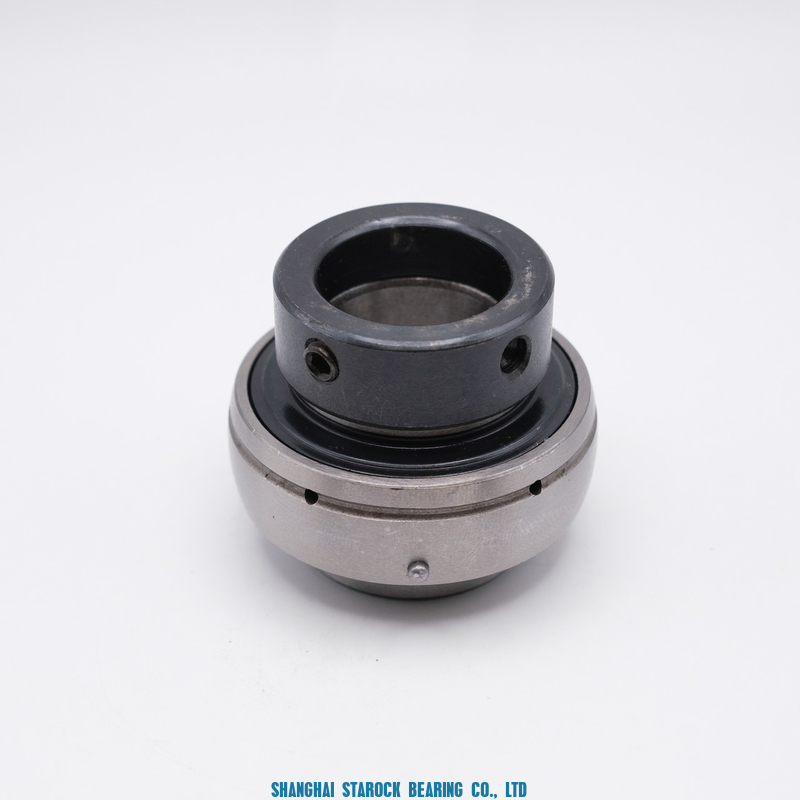

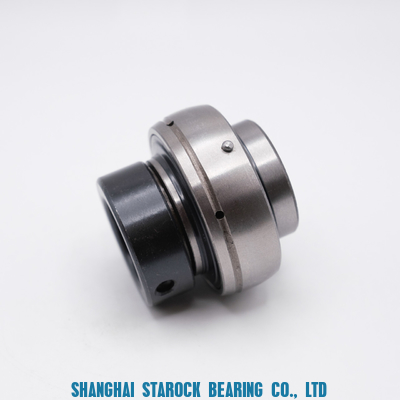

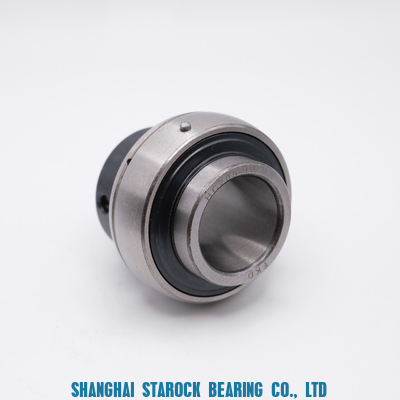

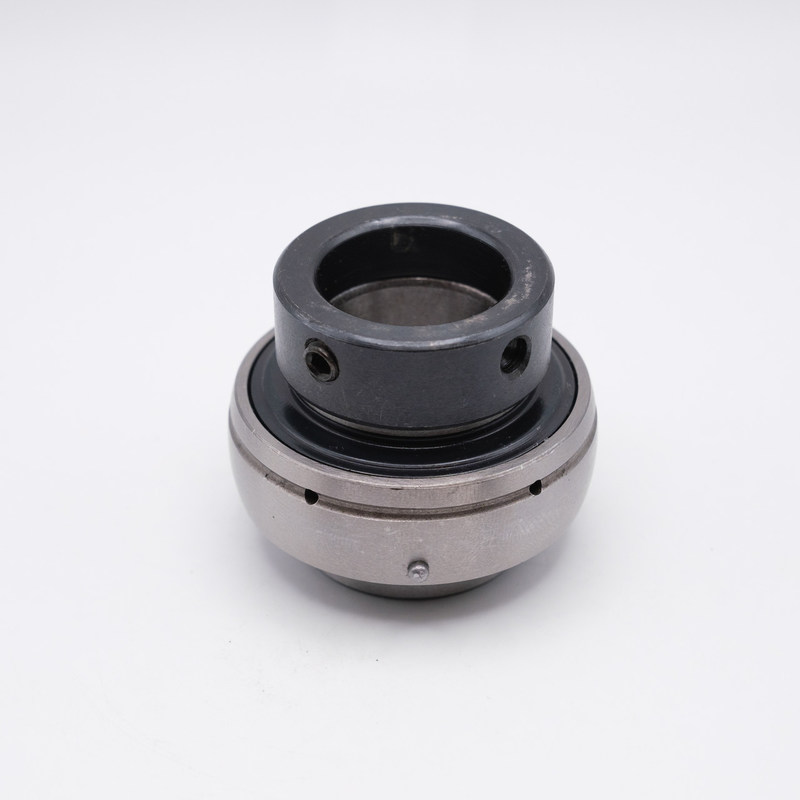

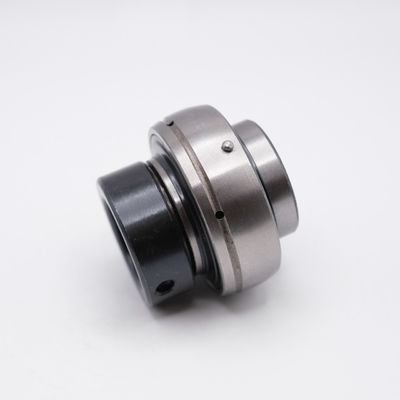

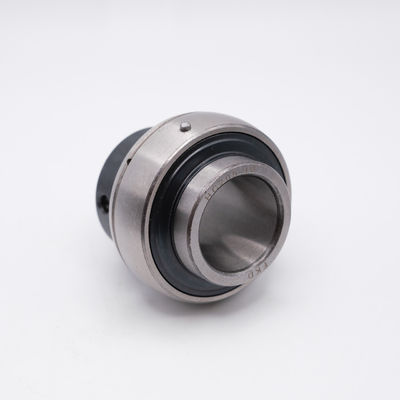

HC209-27 is a Precision Eccentric Bore Insert Ball Bearing with a Set Screw Locking Collar. The HC200 Series Insert Bearing is self aligning for standard load capacity and features an eccentric cam locking collar with set screws for the attachment of the shaft. This HC209-27 Insert Bearing has a combination of both a drilled hole in the groove on the locking collar and to make things more efficient, it has a drilled oil hole opposite to the collar to make it interchangeable with the different manufactures. Our Insert Ball Bearings come in a variety of configurations for various duty strength applications and are Pre-Lubricated with Grease to allow it to be ready to use upon arrival.
- Inner Diameter:
- 1-11/16"
- Outer Diameter:
- 85mm
- Width:
- 22mm
- Material:
- Chrome Steel SAE-52100
- Lubrication:
- Chevron SRI-2 Grease
- Static Load:
- 3,270 lbf
- Dynamic Load:
- 2,040 lbf
- Speed Limit:
- 2,800 RPM
- Country of Origin:
- China
- Interchange Numbers:
- UG209-27, EX209-27, UEL209-111D1, NAA09-27KR, EW209-27S, 1045-1-11/16DECG, NA209-27, G1111KRRB, R-111, GY1111KRRB, INS-SXR-111, NAA09-27KR, VE-227, YG227NL, YEL209-111, YW220-1-11/16, R-27E
-
