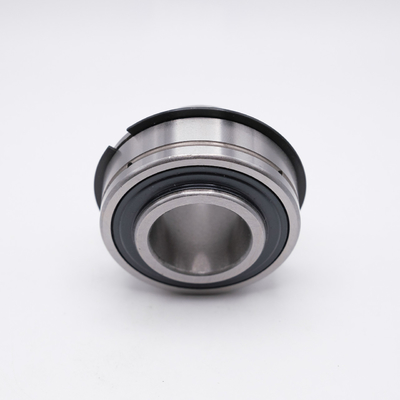

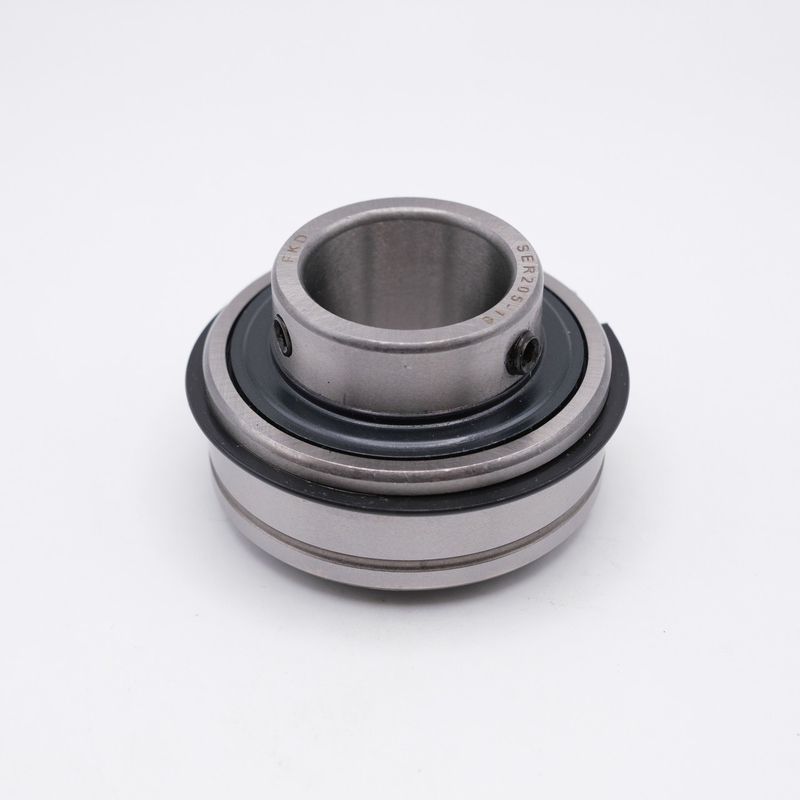

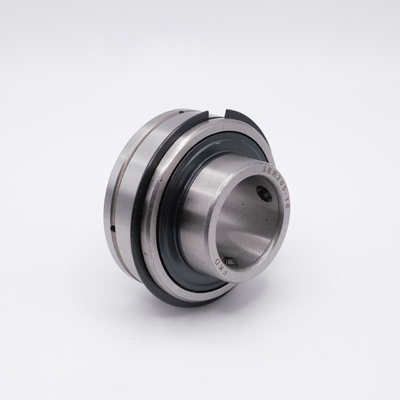

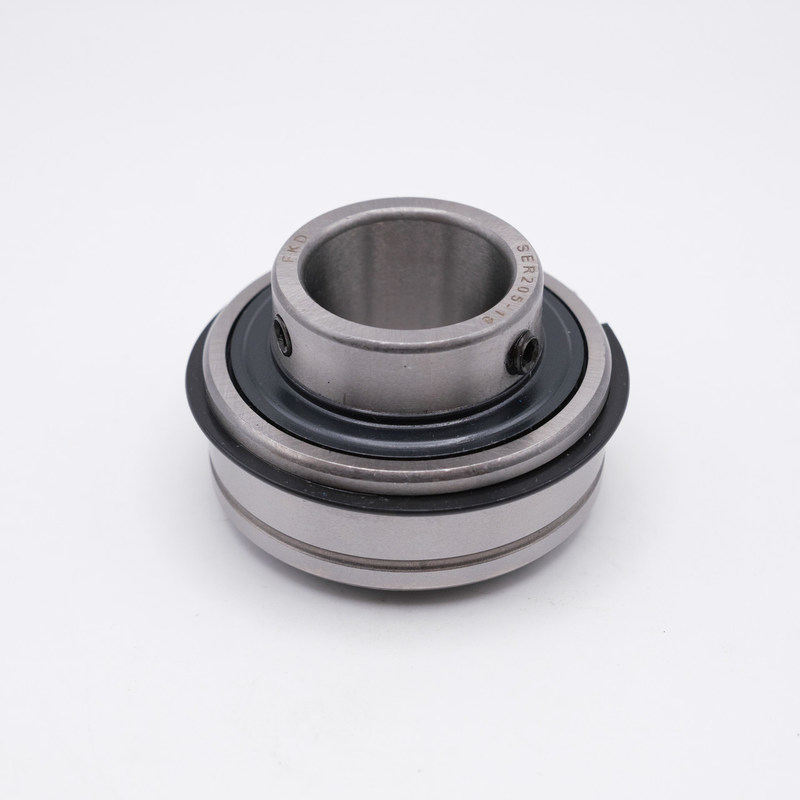

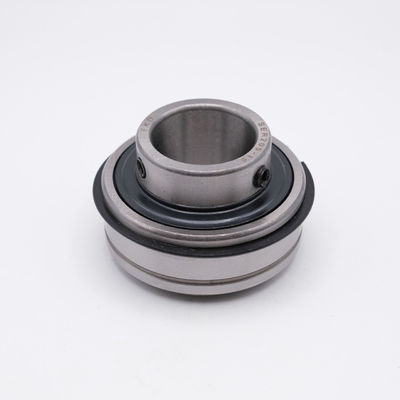

Product Manufacturer Long Using Life Good Performance 1-1/4" bore SER207-20 Insert Ball Bearing with snap ring ER20
Product Details:
| Place of Origin: |
China |
| Brand Name: |
STAROCK |
| Model Number: |
SER207-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Delivery Time: |
3-7 work days |
| Payment Terms: |
T/T, Western Union, L/C |
Contact Now
Detailed Product Description
Key Features
SER207-20 is a SER200 Series Set Screw Locking Bearing Insert Ball Bearing with a Snap Ring and Grease Feeding Access. This SER207-20 Insert Bearing has two set screws which allows it to tighten against a shaft once it is fitted properly and a grease feeding groove for re-lubrication of the bearing. Our SER200 Series Insert Bearing features a snap ring which facilitates the axial location of the bearing in its housing and each of our inserts have been pre-lubricated with grease, allowing them to be ready for use upon arrival.
- Inner Diameter:
- 1-1/4"
- Outer Diameter:
- 72mm
- Width:
- 23.8mm
- Material:
- Chrome Steel SAE-52100
- Lubrication:
- Chevron SRI-2 Grease
- Static Load:
- 3,440 lbf
- Dynamic Load:
- 5,780 lbf
- Speed Limit:
- 4,500 RPM
- Country of Origin:
- China
- Interchange Numbers:
- ER207-20, SER-20, 1135-1-1/4CG, UCS207-104LD1NR, ER20, ER-20, VER-220, VCS207-104DINR, 8090T15, ER107-20, SER207 1-1/4, SER207 20
-
