Product Manufacturer Long Using Life Good Performance 1-1/4" bore SA206-20 Eccentric Bore Insert Ball Bearing JD8545
Product Details:
| Place of Origin: |
China |
| Brand Name: |
STAROCK |
| Model Number: |
SA206-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Delivery Time: |
3-7 work days |
| Payment Terms: |
T/T, Western Union, L/C |
Contact Now
Detailed Product Description
Key Features

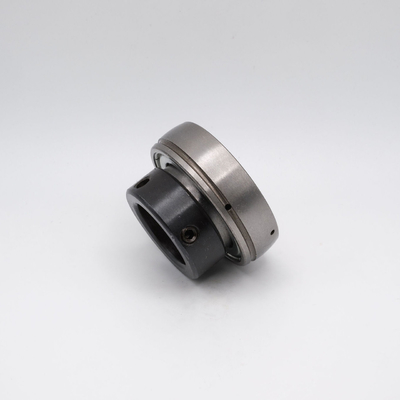

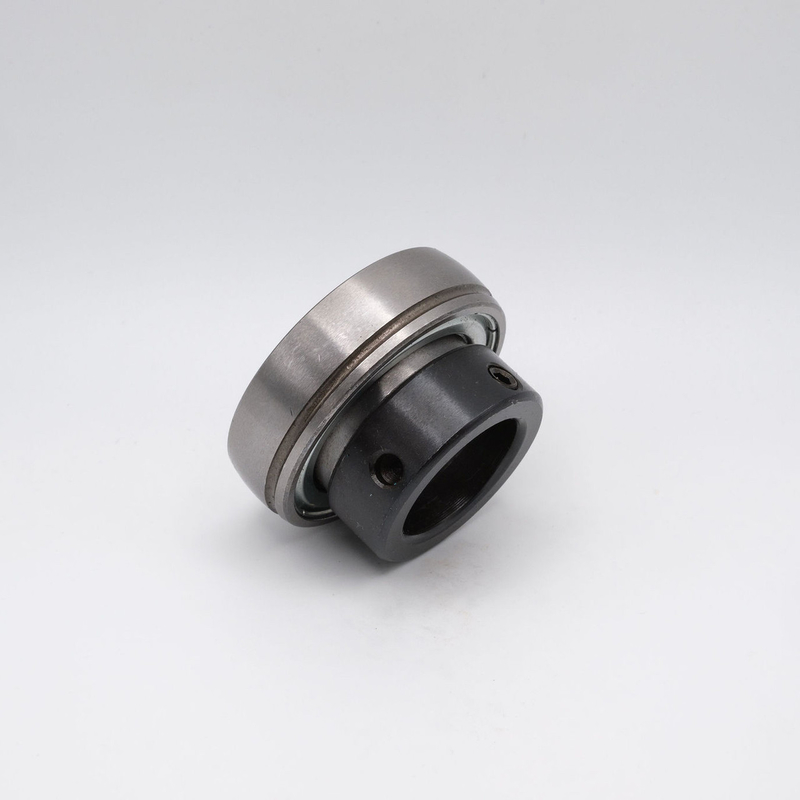

SA206-20 is a Chrome Steel Precision Eccentric Bore Insert Ball Bearing with a Set Screw Locking Collar. SA206-20 Insert Ball Bearing has been manufactured to standard load capacity and has standard lubrication features in addition to a drilled oil hole opposite to the collar to make it interchangeable with all manufacturers. The locking collar has been equipped with two Set Screws to tighten onto a shaft. Our Insert Ball Bearings come in a variety of configurations for various duty strength applications and are pre-lubricated with Grease to allow it to be ready to use upon arrival.
- Inner Diameter:
- 1-1/4"
- Outer Diameter:
- 62mm
- Width:
- 16mm
- Material:
- Chrome Steel SAE-52100
- Lubrication:
- Chevron SRI-2 Grease
- Static Load:
- 1,130 lbf
- Dynamic Load:
- 1,950 lbf
- Speed Limit:
- 6,500 RPM
- Country of Origin:
- China
- Interchange Numbers:
- SA206-1.1/4, VE-104-20, SXV-104S, GRA103RRB3, AEL206-104D1, FH206-20, LE206-20, NPS103RP2C, JD8545, SA206-20, RA103RRB2, 598631R91
-
