Product Manufacturer Long Using Life Good Performance 1-1/4" Bore CSB207-20 Cylindrical Outer Insert Bearing with Set Screw SBB207-20
Product Details:
| Place of Origin: |
China |
| Brand Name: |
STAROCK |
| Model Number: |
CSB207-20 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Delivery Time: |
3-7 work days |
| Payment Terms: |
T/T, Western Union, L/C |
Contact Now
Detailed Product Description
Key Features

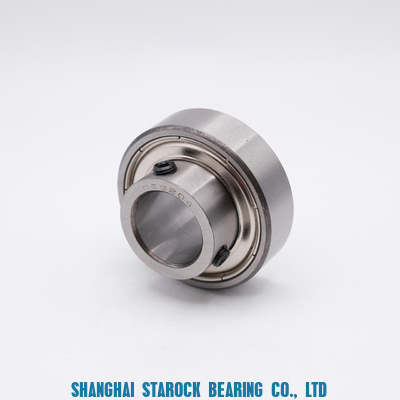

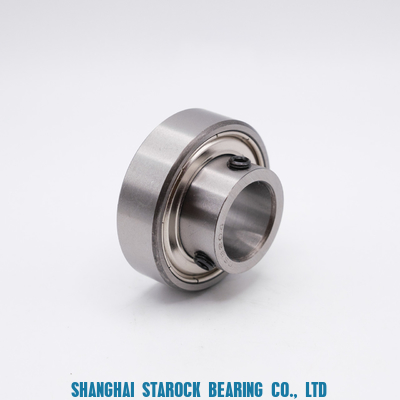

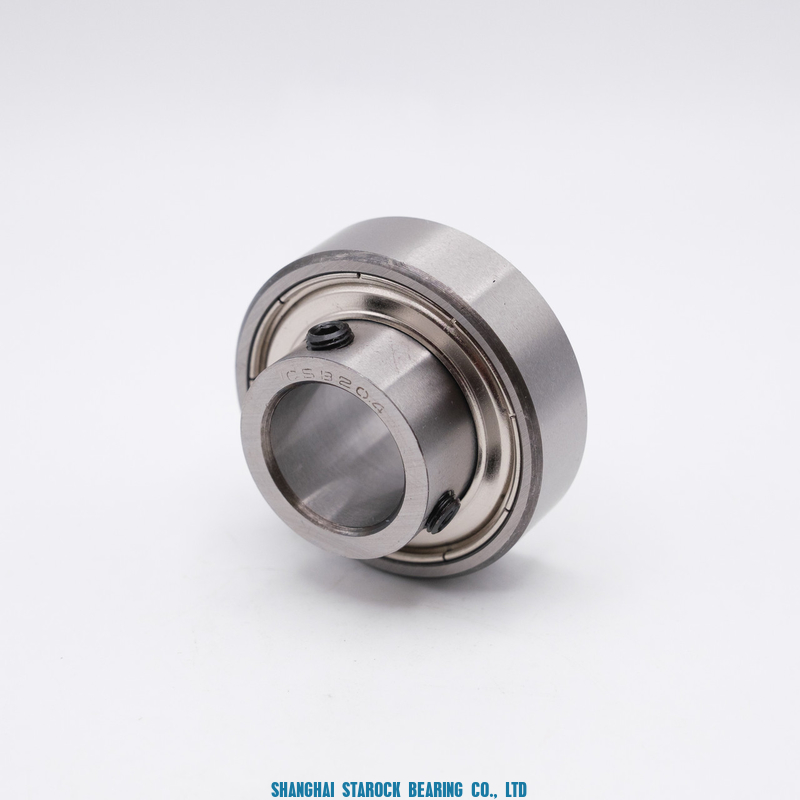

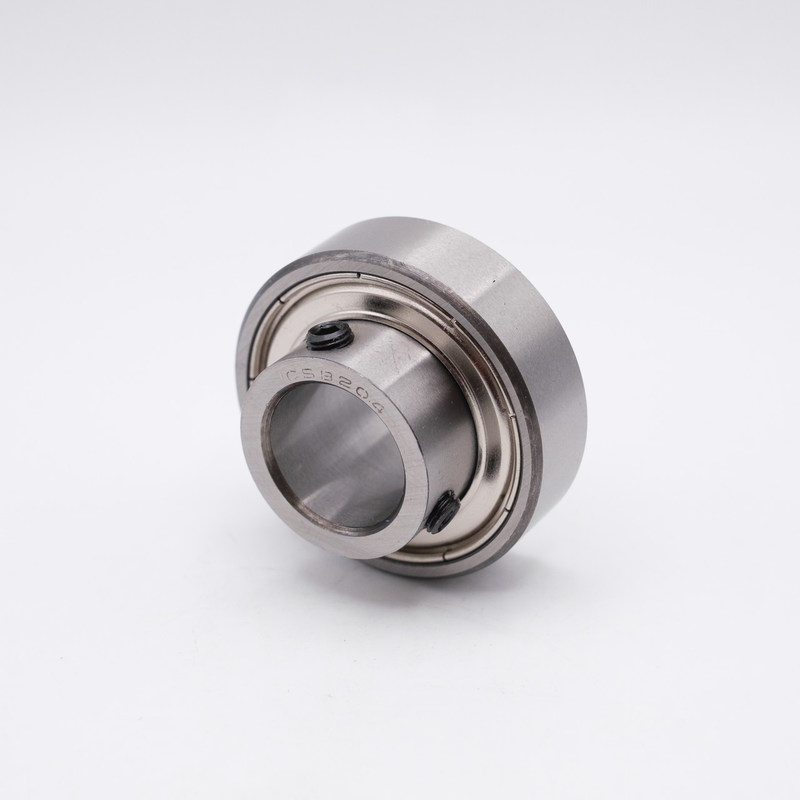

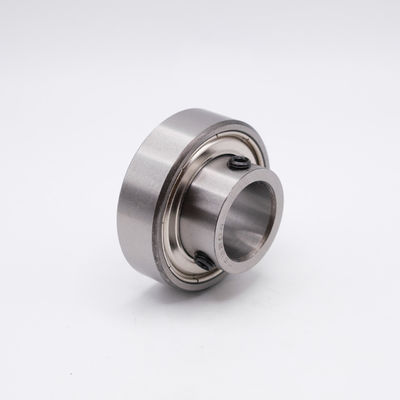

CSB207-20 is an Insert Ball Bearing with two set screws on the extended end of the inner ring used for holding onto a shaft. It has a cylindrical outer race that is engineered for light duty use and has lubricating groove access. This type bearing is self-aligning for standard load capacity and can also be a replacement bearing for many Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, and Take-up units. Our Insert Ball Bearings come in a variety of configurations for various duty strength applications & come pre-lubricated with Grease to allow them to be ready to use upon arrival.
- Inner Diameter:
- 1-1/4"
- Outer Diameter:
- 72mm
- Width:
- 17mm
- Material:
- Chrome Steel SAE-52100
- Lubrication:
- Chevron SRI-2 Grease
- Static Load:
- 3,440 lbf
- Dynamic Load:
- 5,780 lbf
- Speed Limit:
- 4,500 RPM
- Country of Origin:
- China
- Interchange Numbers:
- SBB207-20, ASS207-104, BR7-20, FHSR207-20, YA104RR, AY104NPP
