Product Manufacturer Long Using Life Good Performance 1" bore UC205-16 Insert Ball Bearing Set Screw UC205-100D1
Product Details:
| Place of Origin: |
China |
| Brand Name: |
STAROCK |
| Model Number: |
UC205-16 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Delivery Time: |
3-7 work days |
| Payment Terms: |
T/T, Western Union, L/C |
Contact Now
Detailed Product Description
Key Features

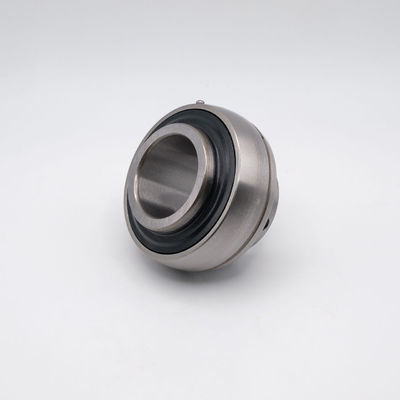

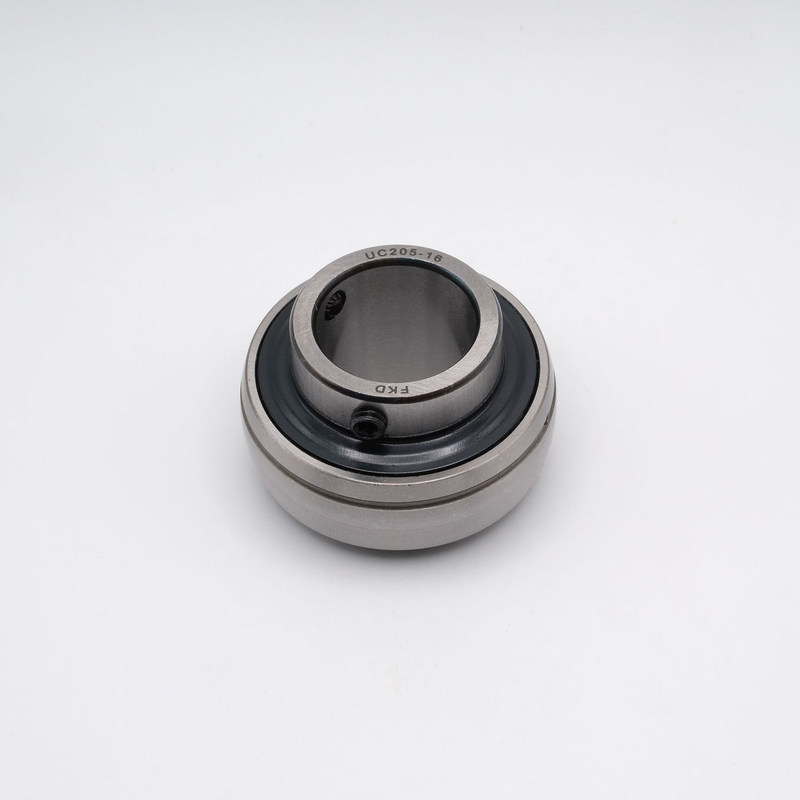

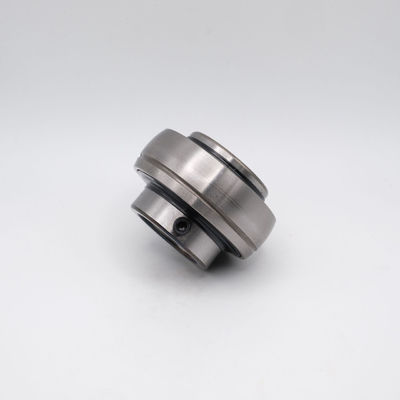

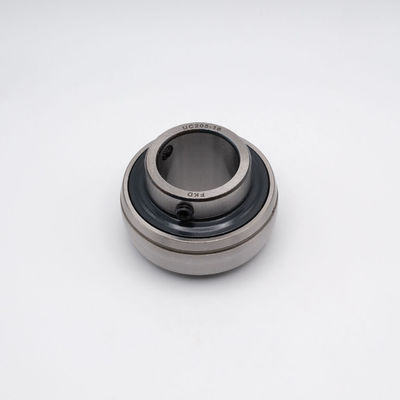

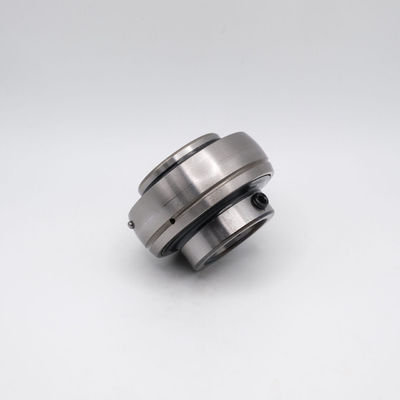

UC205-16 is a Chrome Insert Ball Bearing with two set screws on the extended end of the inner ring used for holding onto a shaft. It features Lubricating Groove Access and is pre-lubricated with Grease, ensuring it is ready for use upon arrival. This UC205-16 Insert Bearing is self-aligning for standard load capacity and this specific arrangement is suitable for applications where the direction of rotation alternates. UC200 Series Insert Ball Bearings are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4-Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.
- Inner Diameter:
- 1"
- Outer Diameter:
- 52mm
- Width:
- 17mm
- Material:
- Chrome Steel SAE-52100
- Lubrication:
- Chevron SRI-2 Grease
- Static Load:
- 1,810 lbf
- Dynamic Load:
- 3,154 lbf
- Speed Limit:
- 6,250 RPM
- Country of Origin:
- China
- Interchange Numbers:
- UC205-16, GC1100KRRB, UC205-100D1, UC205-16S, 1025-1G, UC205-16, GY1100KRRB, YAR205-100-2F, INS-SC-100, VS-216, YW250x1, UG216N, MB251-PA
- SUC205-100
