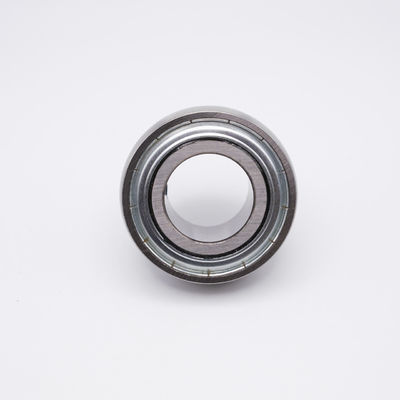

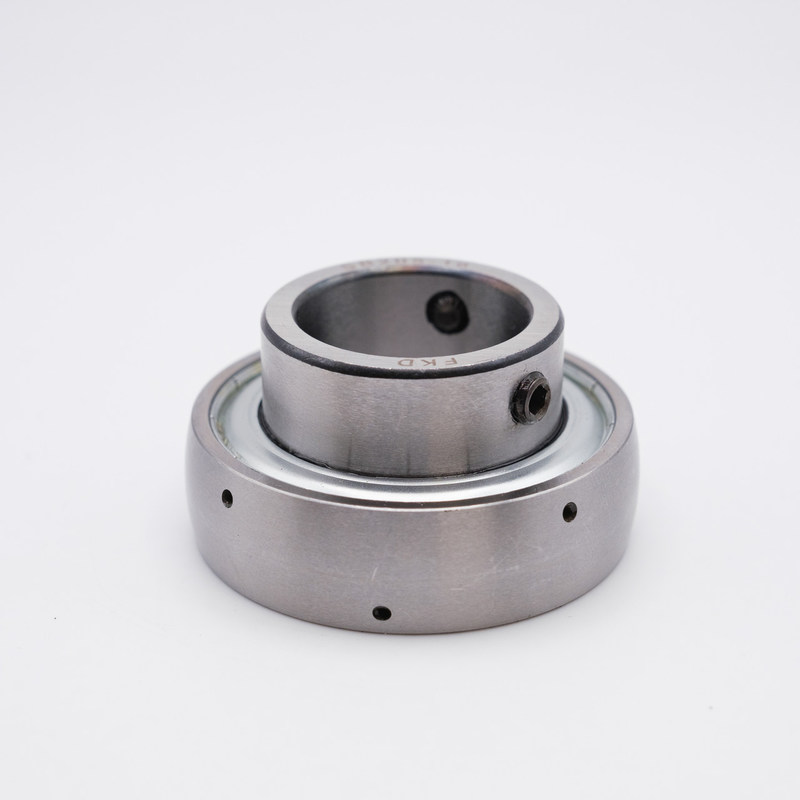

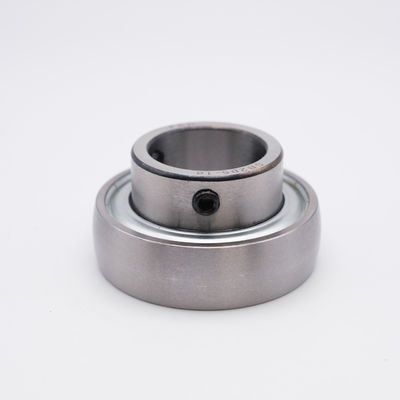

Product Manufacturer Long Using Life Good Performance 1" bore SB205-16 Insert Set Screw Bearing FHS205-16
Product Details:
| Place of Origin: |
China |
| Brand Name: |
STAROCK |
| Model Number: |
SB205-16 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Delivery Time: |
3-7 work days |
| Payment Terms: |
T/T, Western Union, L/C |
Contact Now
Detailed Product Description
Key Features
SB205-16 is an Insert Ball Bearing that has been manufactured with a Spherical Outer Diameter and Set Screw Locking. This chrome steel insert ball bearing features a narrow inner ring as well as two Setscrews on the extended end of the insert, which can be tightened when positioned onto a shaft. SB205-16 insert ball bearings are made with lubrication groove access and are pre-lubricated with grease, ensuring they are ready for use upon arrival. SB205-16 Insert Ball Bearings are widely used as replacement bearings for Pillow Blocks, 2-Bolt Flanges, 3-Bolt Flanges, 4 Bolt Flanges, Take-Up Units, and many more. It can be costly to replace the whole unit however, buying just the replacement for the insert bearing can save you from over spending.
- Inner Diameter:
- 1"
- Outer Diameter:
- 52mm
- Width:
- 15mm
- Material:
- Chrome Steel SAE-52100
- Lubrication:
- Chevron SRI-2 Grease
- Static Load:
- 1,810 lbf
- Dynamic Load:
- 3,154 lbf
- Speed Limit:
- 6,250 RPM
- Country of Origin:
- China
- Interchange Numbers:
- FHS205-16, B5-16, LS-116, YA100RRB, B250-1, SB205-16N, S216EL, AS205-100, L-16
