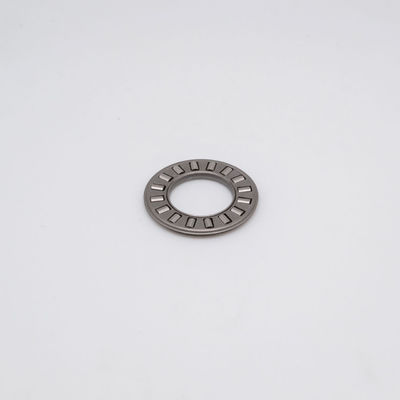

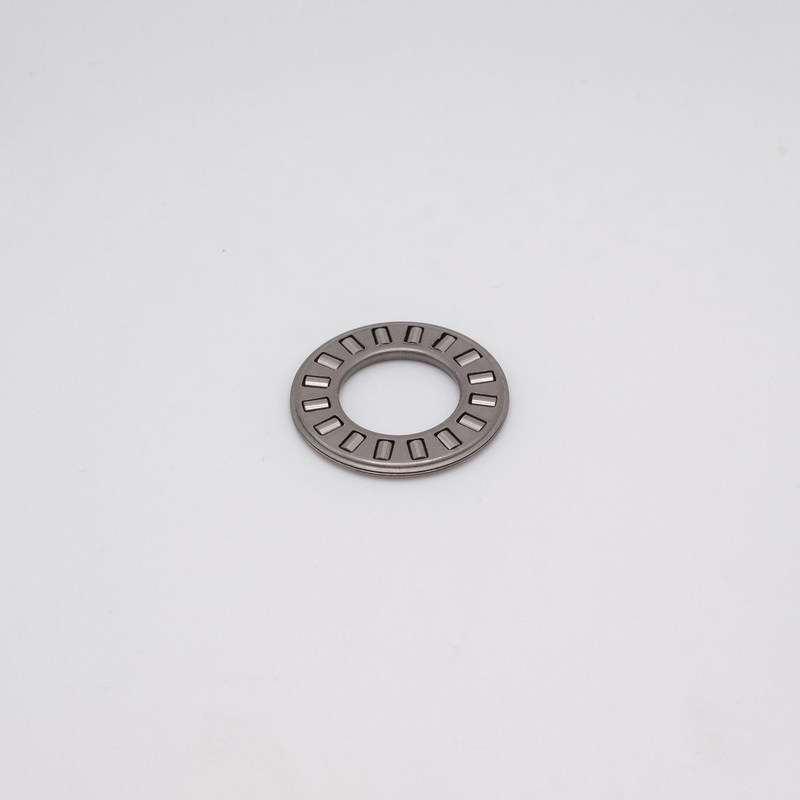

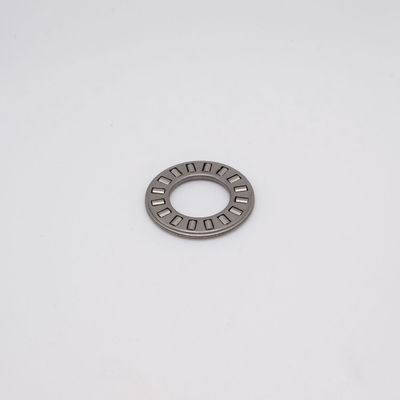

Cheap price customized OEM manufacturer thrust bearing NTA-2840 Thrust Caged Needle Roller Bearing 1-3/4 x 2-1/2 x 5/64
Product Details:
| Place of Origin: |
China |
| Brand Name: |
STAROCK bearings |
| Model Number: |
NTA-2840 |
Payment & Shipping Terms:
| Minimum Order Quantity: |
1 |
| Price: |
Negotiable |
| Packaging Details: |
single |
| Delivery Time: |
3-7 work days |
| Payment Terms: |
T/T, Western Union |
| Supply Ability: |
500000 |
Contact Now
Detailed Product Description
Key Features
NTA2840 is a Thrust Caged Needle Roller Bearing designed for use with TRB-Series thrust washer and cage assemblies in applications where adjacent components cannot serve as raceways. The thrust washer serves as a raceway surface for the thrust assembly’s rolling elements and can be used as a shaft washer (bore-piloting washer) fixed on the shaft or a housing washer (outer diameter-piloting washer) fixed in the housing. Both sides of the washer can be used as raceways and are flush ground for higher speeds and greater running accuracy than unground raceways. The washer is made of low alloy, through-hardened chromium steel for durability, heat tolerance, and resistance to deformity under heavy loads.
- Inner Diameter:
- 1-3/4"
- Outer Diameter:
- 2-1/2"
- Width:
- 5/64"
- Material:
- Chrome Steel SAE-52100
- Lubrication:
- Light Oil
- Static Load:
- 30,900 lbf
- Dynamic Load:
- 5,690 lbf
- Speed Limit:
- 6,800 RPM
- Country of Origin:
- China
- Interchange Numbers:
- TC2840, NTA2840
-
