Brand Name: | STAROCK bearings |
Model Number: | 22236CA CAK CA/W33 CAK/W33 |
Minimum Order Quantity: | 1 |
---|---|
Delivery Time: | 3-7 work days |
Payment Terms: | T/T, Western Union |
Detailed Product Description

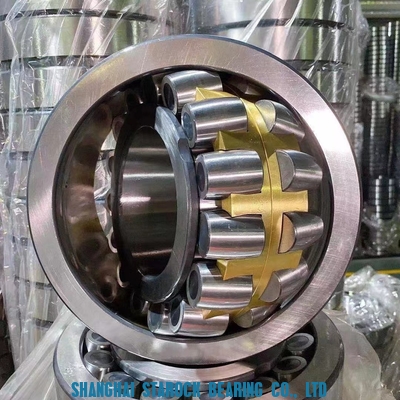

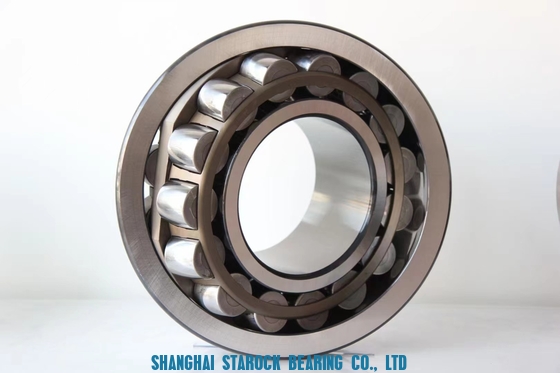

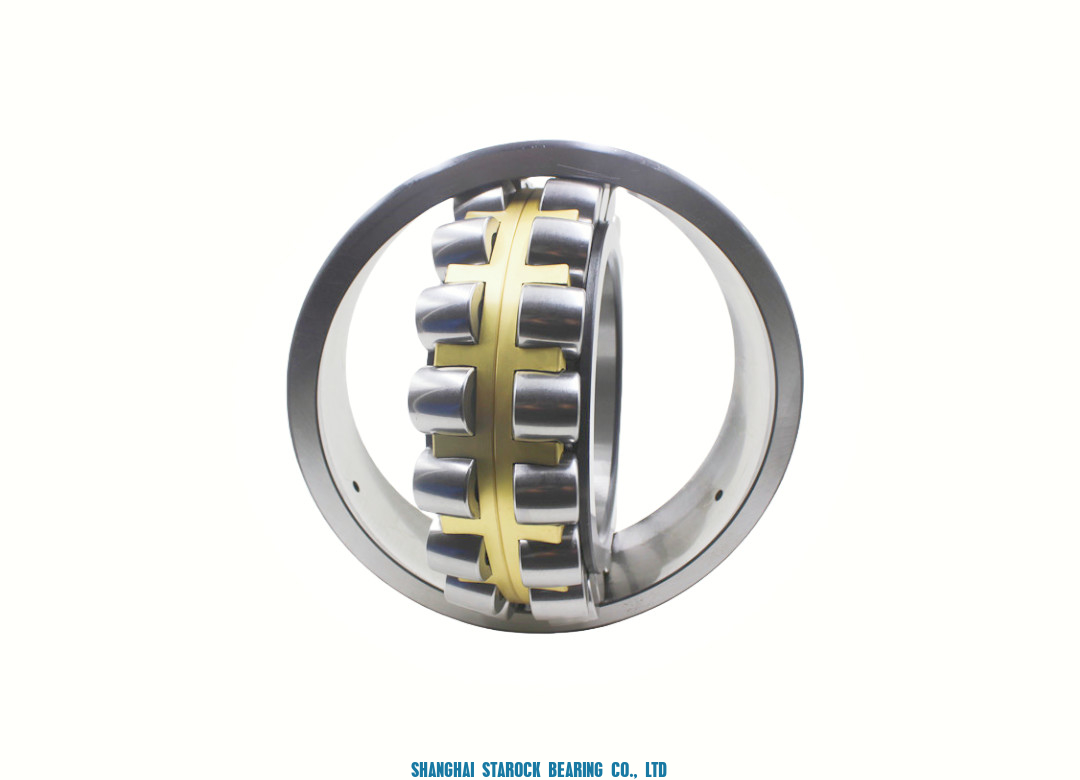

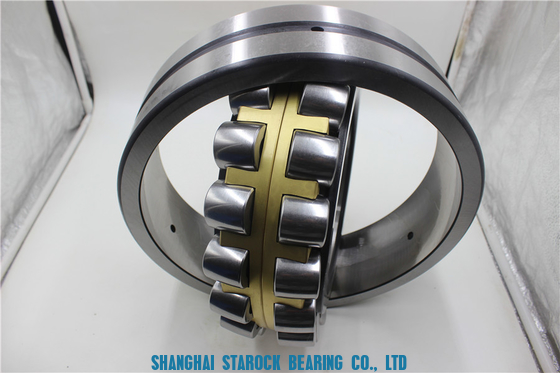

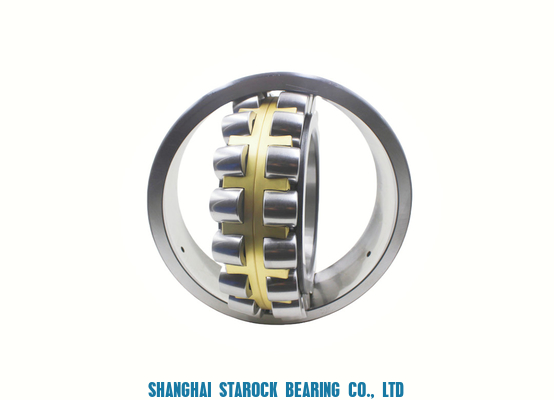

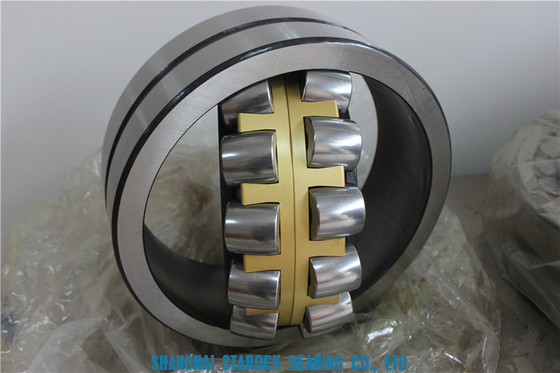

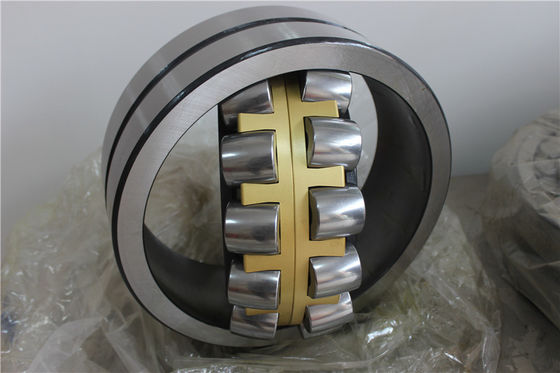

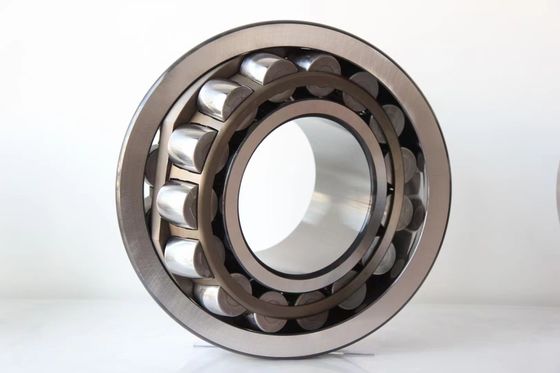

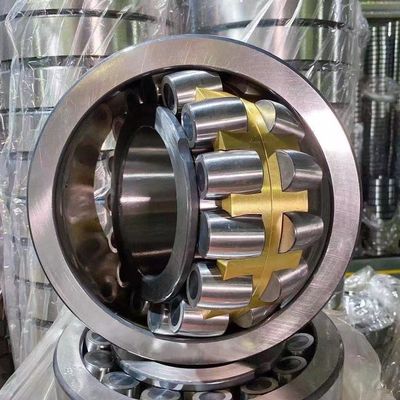

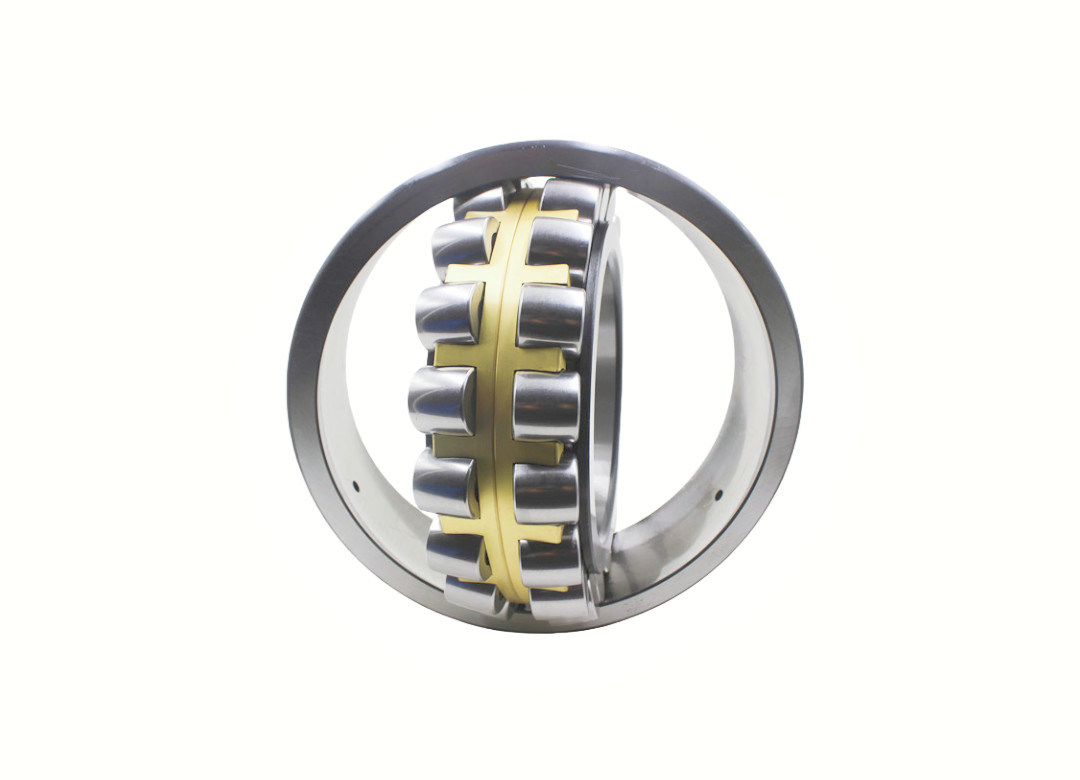

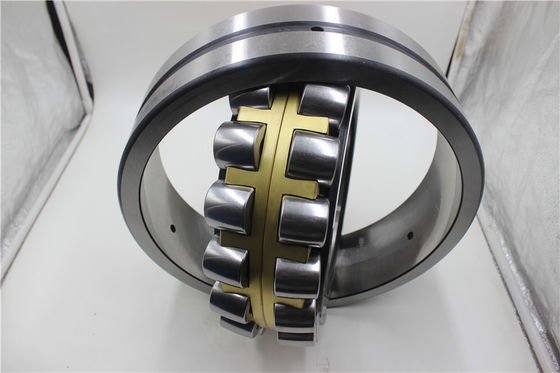

22236CA CAK CA/W33 CAK/W33
Size 180*320*86 mm
Other size
Bearing Number | Boundary Dimensions(mm) | Basic Load Ratings(kN) | Limiting Speeds(rpm) | Mass(Kg) | |||||
IKG | d | D | B | rs min | Cr | Cor | Grease | Oil | (Approx.) |
22205 | 25 | 52 | 18 | 1 | 36.5 | 36 | 6,500 | 10,000 | 0.186 |
22206 | 30 | 62 | 20 | 1 | 49 | 49 | 5,700 | 8,800 | 0.287 |
22207 | 35 | 72 | 23 | 1.1 | 69.5 | 71 | 4,900 | 7,500 | 0.446 |
22208 | 40 | 80 | 23 | 1.1 | 79 | 88.5 | 4,300 | 6,600 | 0.526 |
22209 | 45 | 85 | 23 | 1.1 | 82.5 | 95 | 3,800 | 5,900 | 0.584 |
22210 | 50 | 90 | 23 | 1.1 | 86 | 102 | 3,500 | 5,300 | 0.63 |
22211 | 55 | 100 | 25 | 1.5 | 118 | 144 | 3,200 | 4,900 | 0.808 |
22212 | 60 | 110 | 28 | 1.5 | 115 | 147 | 2,900 | 4,500 | 1.15 |
22213 | 65 | 120 | 31 | 1.5 | 143 | 179 | 2,700 | 4,200 | 1.5 |
22214 | 70 | 125 | 31 | 1.5 | 154 | 201 | 2,500 | 3,900 | 1.55 |
22215 | 75 | 130 | 31 | 1.5 | 166 | 223 | 2,300 | 3,600 | 1.65 |
22216 | 80 | 140 | 33 | 2 | 213 | 277 | 2,200 | 3,400 | 1.99 |
22217 | 85 | 150 | 36 | 2 | 251 | 320 | 2,100 | 3,200 | 2.49 |
22218 | 90 | 160 | 40 | 2 | 292 | 385 | 1,900 | 3,000 | 3.24 |
22219 | 95 | 170 | 43 | 2.1 | 294 | 390 | 1,800 | 2,800 | 4.1 |
22220 | 100 | 180 | 46 | 2.1 | 315 | 415 | 1,700 | 2,700 | 4.95 |
22222 | 110 | 200 | 53 | 2.1 | 410 | 570 | 1,600 | 2,400 | 7.2 |
22224 | 120 | 215 | 58 | 2.1 | 485 | 700 | 1,400 | 2,200 | 9.1 |
22226 | 130 | 230 | 64 | 3 | 570 | 790 | 1,300 | 2,000 | 11.2 |
22228 | 140 | 250 | 68 | 3 | 685 | 975 | 1,200 | 1,900 | 14 |
22230 | 150 | 270 | 73 | 3 | 7+75 | 1,160 | 1,100 | 1,700 | 18.1 |
22232 | 160 | 290 | 80 | 3 | 870 | 1,290 | 1,000 | 1,600 | 22.7 |
22234 | 170 | 310 | 86 | 4 | 1,000 | 1,520 | 980 | 1,500 | 28 |
22236 | 180 | 320 | 86 | 4 | 1,040 | 1,610 | 920 | 1,400 | 29.3 |
22238 | 190 | 340 | 92 | 4 | 1,160 | 1,810 | 860 | 1,300 | 36.6 |
22240 | 200 | 360 | 98 | 4 | 1,310 | 2,010 | 820 | 1,300 | 44 |
22244 | 220 | 400 | 108 | 4 | 1,580 | 2,460 | 730 | 1,100 | 60.4 |
22248 | 240 | 440 | 120 | 4 | 1,940 | 3,100 | 660 | 1,000 | 81.7 |
22252 | 260 | 480 | 130 | 5 | 2,230 | 3,600 | 610 | 930 | 106 |
22256 | 280 | 500 | 130 | 5 | 2,310 | 3,800 | 560 | 860 | 112 |
22260 | 300 | 540 | 140 | 5 | 2,670 | 4,350 | 510 | 790 | 141 |
Dear my friend, our company has thousands of products, and we cannot display them all at the
moment. If you need to leave a message or send an email to us, we will serve you as quickly as
possible, thanks! ! !
Name: Andy
Tel: 86--18521308006
E-mail: andy@starockbearing.com
A: We are trading company.
A: 100% compatible with original manufacturer parts.
A: Our products are fully inspected and many products have a warranty period.
A: As long as it is a reasonable payment method, we almost accept it.
Get Cheap Price from China Bearing Factory Now !
