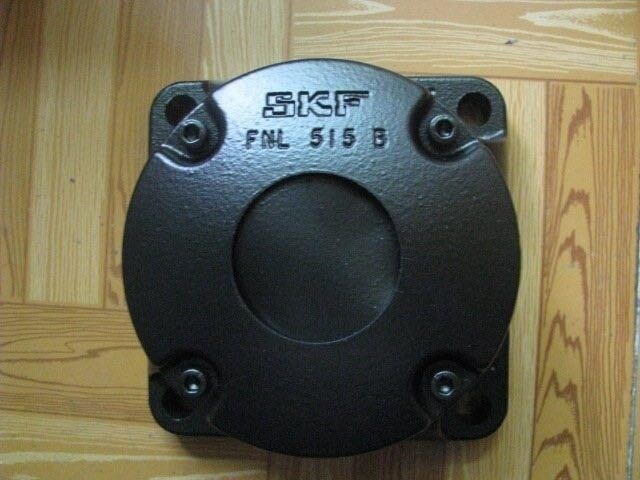

Bearing Pedestal FNL515B STAROCK
Detailed Product Description
Fnl515b (722515b) can be installed with self-aligning ball bearings (1215k or 2215k), spherical roller bearings (22215ek) and carb (c2215k) series bearings, There is an oil filling hole for lubrication on it. The hole diameter of the bearing seat is 65mm, the width of the base is 190mm, the center distance of the bolt mounting hole is 152mm, the diameter of the bolt hole is 16mm, the overall thickness is 104mm, the contact seal code is tfl515 (2 pieces required), the end cover bolt is M8 * 25MM (4 pieces required), and the mass is 10kg
